Product Features
1. Full 304 stainless steel construction for tanks, frame and pipeline, corrosion-resistant, sanitary and long service life.
2. Two-vessel pretreatment system: quartz sand filter removes suspended solids and sediment; activated carbon filter absorbs residual chlorine, color and odor to protect RO membranes.
3. Double pass reverse osmosis technology ensures high salt rejection and stable purified water quality.
4. Skid-mounted integrated design, easy transport and installation, reduce on-site construction work.
5. Automatic PLC + touch screen control with multi safety protection, simple operation and maintenance.
6. Customizable service: upgrade to 316L stainless steel, adjust design based on raw water analysis report.
Technical Parameters
| Water Production Capacity | 1000L/H (1T/H) @25℃ |

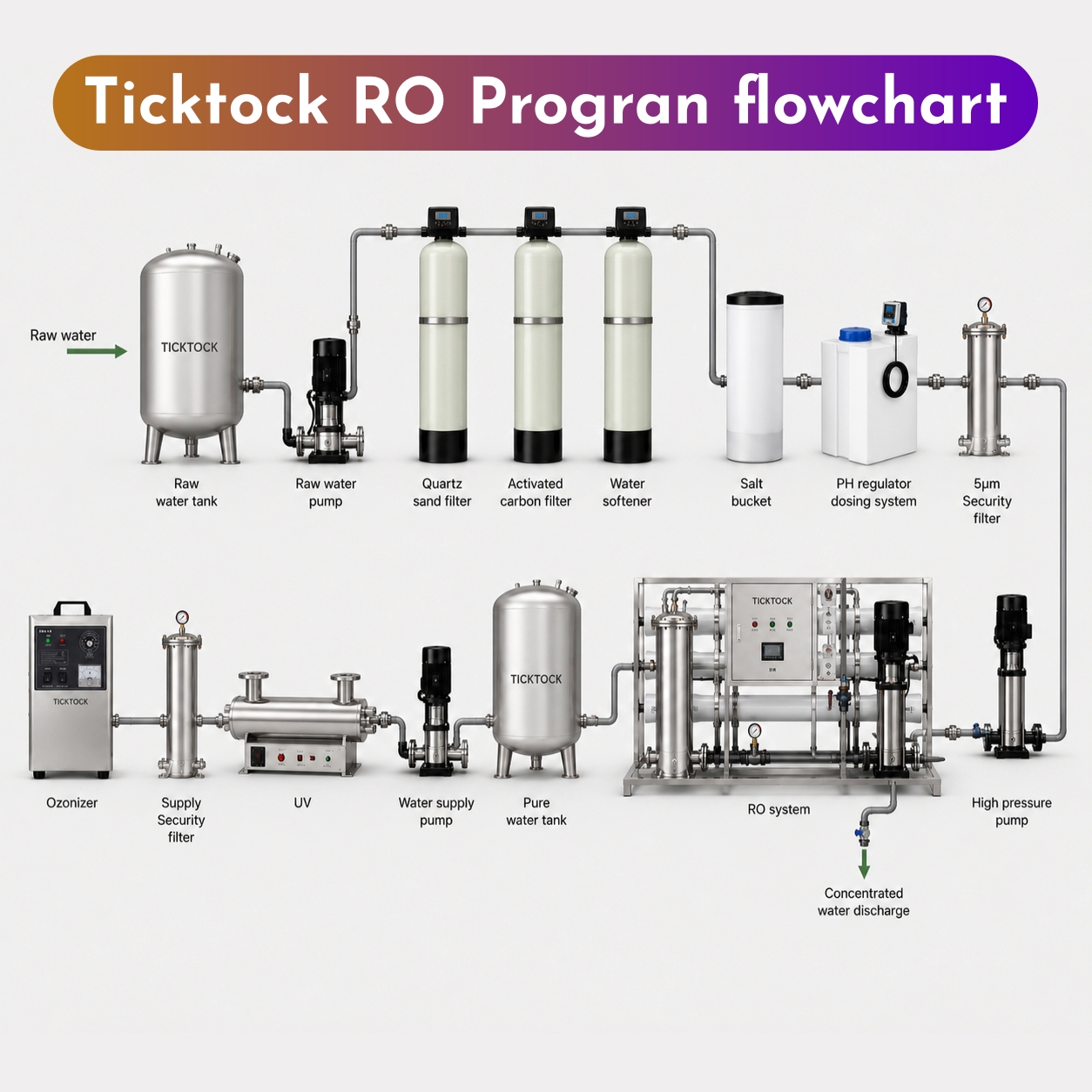

| Water Treatment Process | Raw water → Quartz Sand Filter → Activated Carbon Filter → Security Filter → 1st Stage RO → 2nd Stage RO → Purified Water |
| Pretreatment Vessels | 2 sets 304 stainless steel tanks (Quartz Sand Filter + Activated Carbon Filter) |
| Main Construction Material | 304 stainless steel (tank, frame, pipeline) |
| RO Membrane | Import high rejection reverse osmosis membrane |
| Total Salt Rejection | Double stage RO ≥99% |
| Permeate Water Conductivity | ≤5μS/cm (depends on raw water quality) |
| Control System | PLC + Touch screen automatic control, low/high pressure protection |
| Operating Pressure | 1st RO:1.0~1.6MPa; 2nd RO:0.8~1.2MPa |
| Power Supply | 380V/50Hz, 220V optional |
| Structure | Skid-mounted integrated frame |
Working Process
Raw water firstly goes through quartz sand filter to remove sediment and suspended solids, then activated carbon filter to remove chlorine, color and odor. After security filter, the water enters the first-stage reverse osmosis and second-stage reverse osmosis, finally obtains high-purity purified water.
Application Industries
Cosmetic manufacturing, food and beverage processing, fine chemical, laboratory water supply, electroplating rinsing, pharmaceutical pre-treatment water, battery manufacturing.
FAQ
Q: What is this 1T/H double stage RO water system used for?
A: Double stage reverse osmosis water plant produces high purity purified water, widely used for cosmetic, food and laboratory industry. Our 1T/H RO machine is equipped with quartz sand and activated carbon pretreatment.
Q: Can this 1 ton RO equipment be customized?
A: Yes, we customize the double stage RO system according to your raw water test report. Material can be upgraded to 316L stainless steel.
Q: What is the warranty of the stainless steel RO water plant?
A: 1 year warranty for the whole unit. Consumables including filter cartridges and RO membranes are excluded.
Q: Does this system include pretreatment tanks?
A: Yes. It includes 2 stainless steel pretreatment vessels: quartz sand filter and activated carbon filter.
