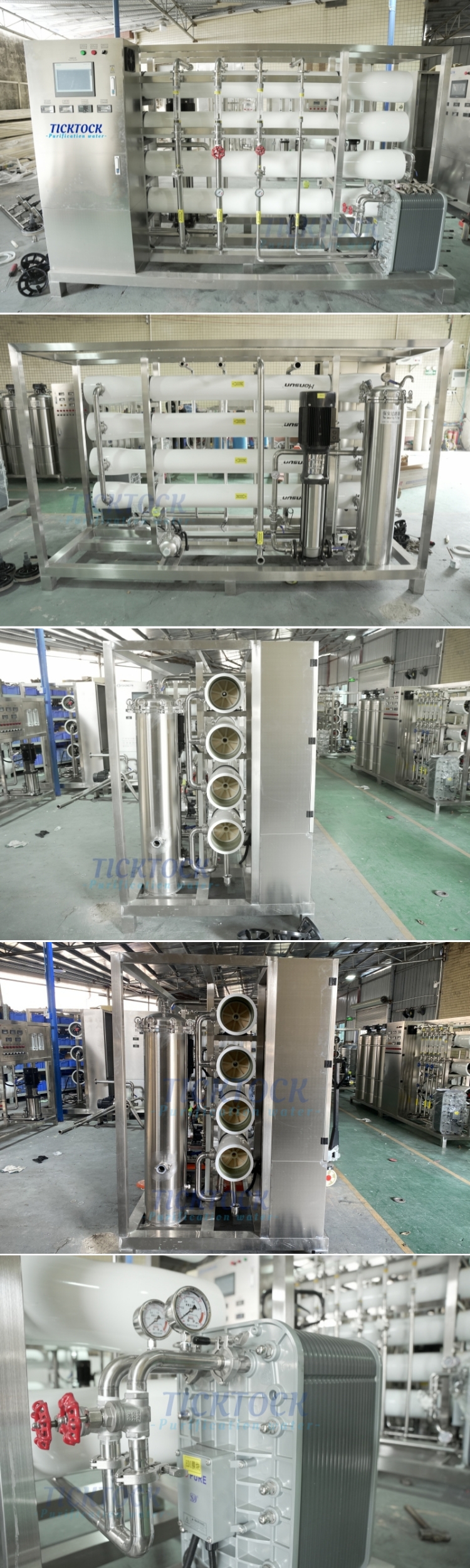

This 8 Ton/H (8000LPH) single stage RO + EDI ultrapure water system is a complete skid-mounted high purity water solution manufactured by Ticktock. Raw water goes through security filter, single-pass reverse osmosis and EDI electrodeionization step by step to remove dissolved salts, colloids and impurities, obtaining qualified ultrapure water. Different from double-stage RO+EDI, this scheme has lower investment cost, and EDI requires no acid & alkali regeneration, greatly reducing chemical consumption and waste discharge.
The whole unit is pre-assembled on SUS304 stainless steel frame, equipped with high-pressure pump, RO membrane housings, online resistivity meter, TDS meter, pressure gauges, flow meters and PLC touch screen control cabinet. It supports continuous 24-hour stable running with automatic alarm and interlock protection.
Core Technical Parameters
Model TK-EDI-8T/H
Rated Output 8000L/H (8 Ton/H)
Process Flow Single Stage Reverse Osmosis + EDI Electrodeionization
RO Membrane 8 pcs 8040 RO membrane elements
EDI Module Ionpure type industrial EDI module
Frame Material SUS304 Stainless Steel
Control System PLC + HMI Touch Screen, automatic operation
Outlet Resistivity 10–15 MΩ·cm (depends on raw water quality)
Operation Mode Continuous running
Regeneration EDI no acid & alkali regeneration needed
Installation Type Skid-mounted, pre-assembled
Customization Support customized design according to raw water report
Advantages
• Cost-effective solution, lower investment compared with double-stage RO+EDI system
• EDI without acid and alkali regeneration, low operation cost and environmental friendly
• Full automatic control, high/low pressure protection, water shortage alarm, automatic shutdown
• Compact integrated skid design, easy for transportation and on-site installation
• Independent RO membrane housing, convenient for membrane replacement and daily maintenance
• Real-time online monitoring of TDS, resistivity, pressure and flow rate
Application Industries
• Electronic component cleaning and semiconductor auxiliary water
• Lithium battery and new energy material production
• Electroplating and surface treatment production line
• Laboratory analytical testing water
• Fine chemical and pharmaceutical preparation process water
• High purity makeup water for boiler
FAQ
Q1: What is single stage RO + EDI ultrapure water system?
A: It is high purity water equipment that uses one set reverse osmosis to remove most salts, then EDI for deep deionization to get ultrapure water. It is a cost-effective alternative for double-stage RO system when raw water TDS is moderate.
Q2: What resistivity can this 8 ton/h RO EDI machine reach?
A: Normally stable at 10~15 MΩ·cm. The final value is affected by raw water TDS and pretreatment effect.
Q3: Does EDI need chemical regeneration like mixed bed resin?
A: No. EDI relies on electric field to realize continuous deionization, no acid and alkali regeneration required.
Q4: Can you customize the water capacity of RO EDI system?
A: Yes. We provide 1T/H ~ 40T/H RO+EDI systems. Send your raw water test report and water requirement, we provide tailored process design.
Q5: Is this unit skid mounted?
A: Yes. All core components are pre-installed on stainless steel frame. On-site work only needs water inlet, power supply and outlet pipe connection.
