10000 TPD Industrial Ultrafiltration Water Treatment System Project (Algeria)
Project Overview

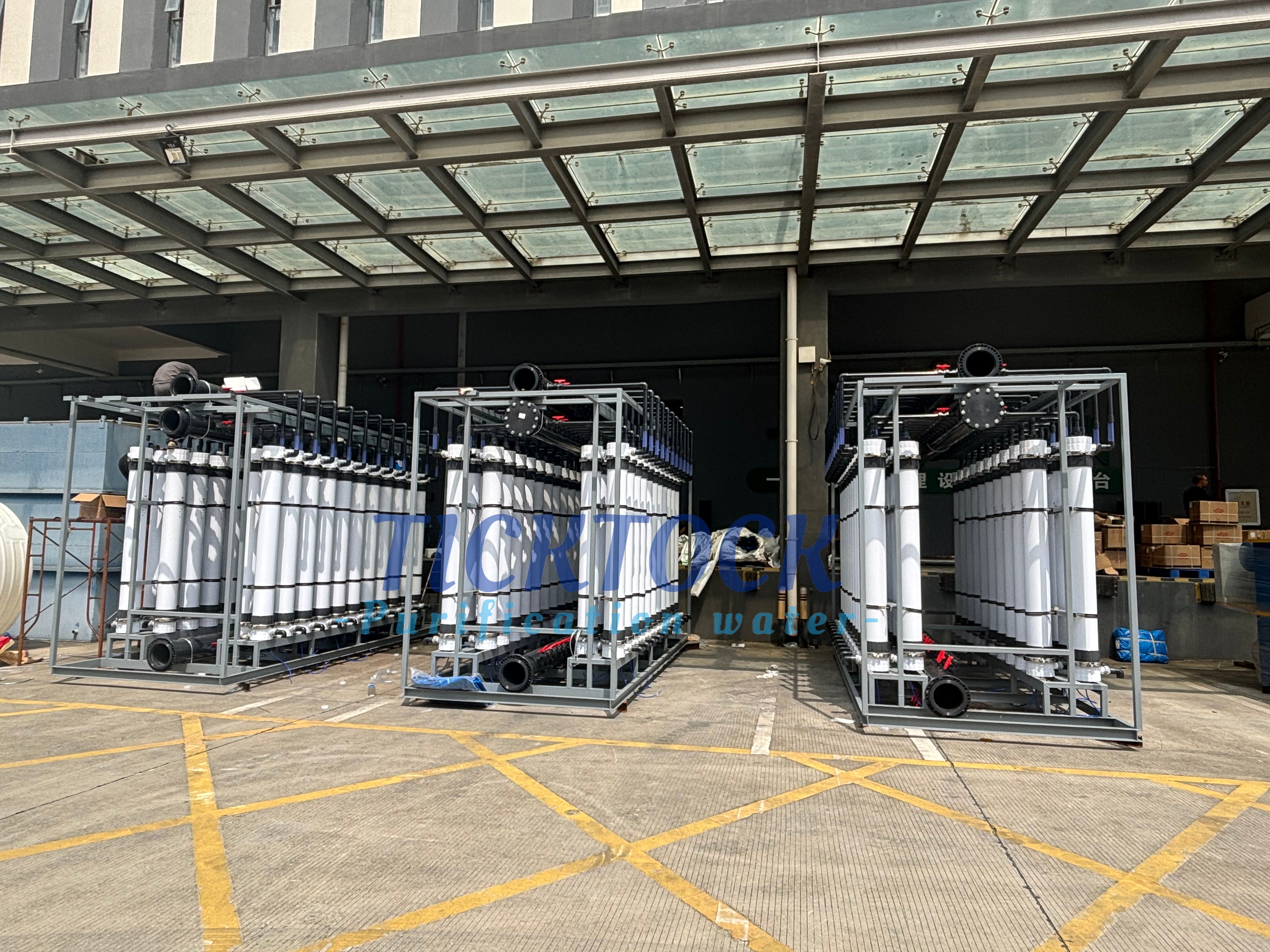

This large capacity ultrafiltration project located in Algeria, with a designed total treatment capacity of 10,000 tons per day (10000 TPD). The whole system is composed of multiple sets of skid-mounted ultrafiltration racks, equipped with vertical PVDF hollow fiber ultrafiltration membrane elements.
Algeria faces water resource shortage, this UF plant works as the core pretreatment unit for raw water purification, providing qualified feed water for reverse osmosis desalination equipment to produce usable industrial water.
Process Description
Raw water enters the ultrafiltration membrane modules after preliminary pretreatment. The ultrafiltration membrane intercepts suspended solids, colloid, bacteria and particulate impurities in raw water. The system is equipped with automatic backwashing and online CIP chemical cleaning functions to ensure stable long-term continuous operation. The permeate meets the inlet requirement of RO system.
Main Technical Parameters
- Total Capacity: 10000 Tons Per Day (10000 TPD)
- Membrane Type: Vertical PVDF hollow fiber ultrafiltration membrane
- Frame Material: Carbon steel with anti-corrosion coating
- Pipeline Material: UPVC
- Operation Mode: Fully automatic running, auto backwash & CIP cleaning
- Effluent Index: SDI ≤3, suitable for reverse osmosis pretreatment
Project Highlights
- Modular skid-mounted design, easy for on-site assembly in Algeria, convenient for later capacity expansion.
- Vertical PVDF membrane features strong anti-fouling performance, adapts to raw water quality of North Africa.
- Automatic backwash and online chemical cleaning, low daily maintenance workload.
- Compact layout, save land occupation, support 24-hour uninterrupted running.
- We provide full set of technical guidance, installation instruction and after-sales service for Africa projects.
Application Field
Raw water purification, surface water treatment, industrial water reuse, RO pretreatment for large water project in North Africa.
